Brown Fintube Hairpin Industrial Boiler Finned Laser Welding Tubes for Heat Exchangers
Material / Product Description

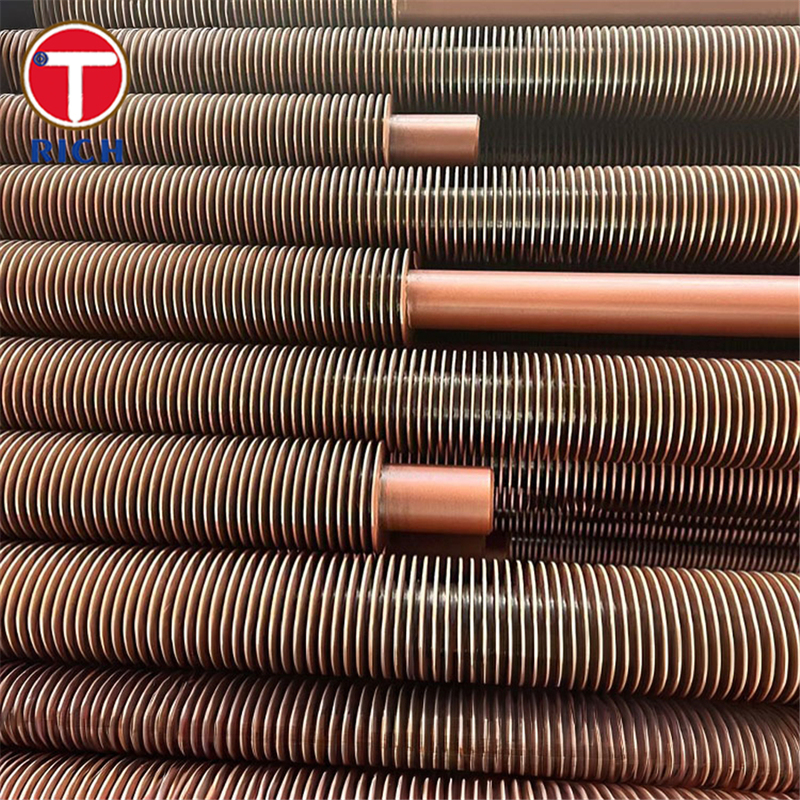

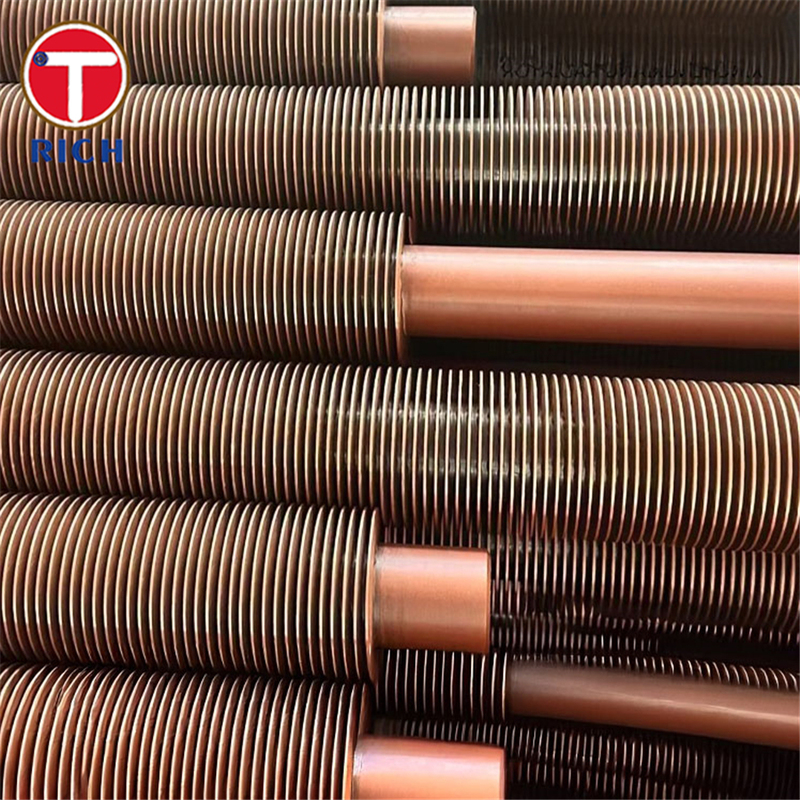

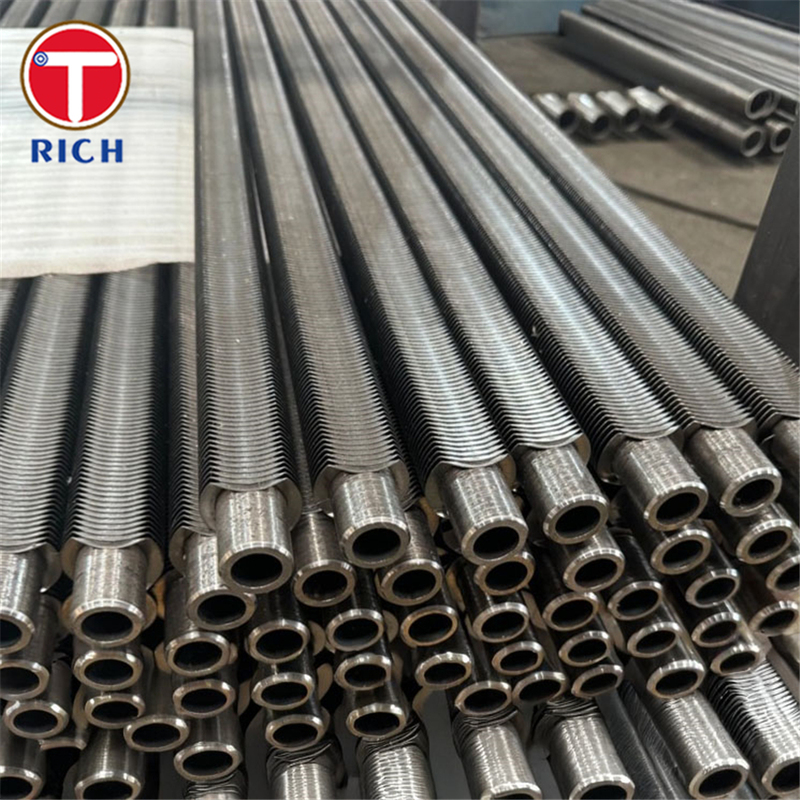

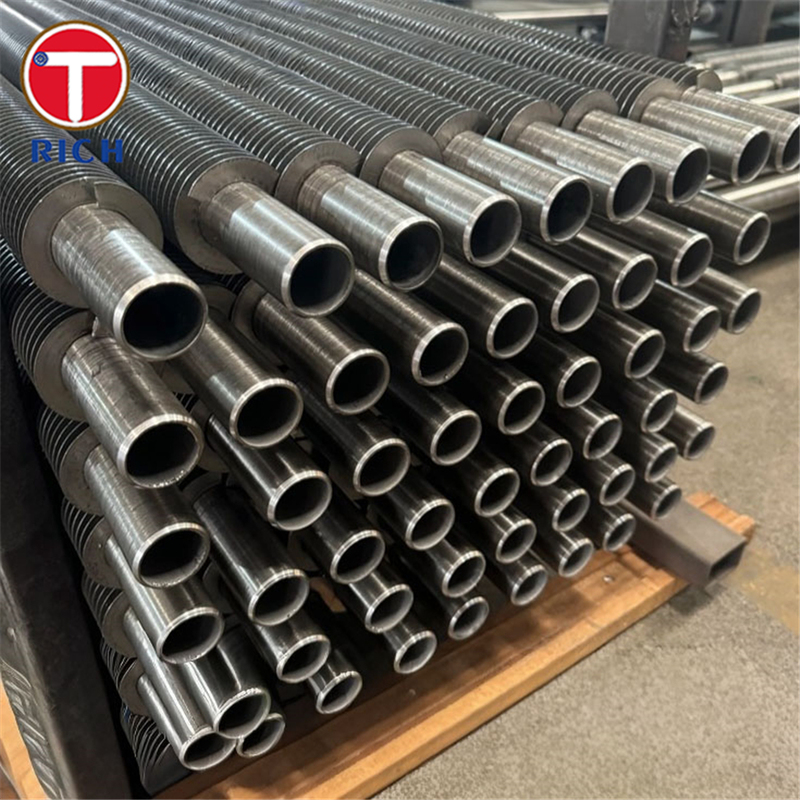

Brown Fintube hairpin tubes are longitudinally finned tubes typically produced via resistance welding (or in more advanced designs via laser welding) where fins are welded onto a base tube to form a compact, high-efficiency heat transfer element. The “hairpin” geometry refers to U-bend or double-leg configurations, making the fins part of compact counterflow or multi-tube heat exchangers (hairpin heat exchangers).
These finned tubes are designed for industrial boilers, economizers, waste heat recovery, gas heaters, and other high temperature / high pressure heat exchange applications.
Specifications
| Parameter |
Typical Value / Range |
| Base tube outer diameter (O.D.) |
19 mm to 76 mm (typical) |
| Base tube wall thickness |
2.0 mm to 6.0 mm (typical) |
| Fin height |
6.0 mm to 32.0 mm |
| Fin thickness |
0.8 mm to 1.2 mm |
| Number of fins per row |
4, 8, 16, 24, 32, 40, 48 (multiples of four) |
| Maximum length |
≤ 15 m typically |
| Fin pitch / spacing |
Project-specific, typical between fins few mm apart |
| Material combinations |
Carbon steel, stainless steels (304, 316, etc.), alloy steels |
Chemical Composition
Below is a sample table comparing the chemical compositions of five analogous finned-tube base materials / grades commonly used in boiler or heat exchanger service. The fin material is often the same type or compatible alloy.
| Grade |
C (max) |
Si |
Mn |
Cr |
Ni |
| ASTM A213 TP304 |
0.08 |
1.00 |
2.00 |
18.0–20.0 |
8.0–10.5 |
| ASTM A213 TP316 |
0.08 |
1.00 |
2.00 |
16.0–18.0 |
10.0–14.0 |
| ASTM A213 T11 |
0.15 |
0.50 |
1.00 |
1.0 |
— |
| ASTM A213 T22 |
0.15 |
0.50 |
1.00 |
2.0 |
— |
| ASTM A335 P11 |
0.15 |
0.50 |
1.00 |
1.0 |
— |
These base steel grades are illustrative. The finned tube may use similar or matching fin alloy. Exact chemical compositions should be referenced from the applicable spec / mill certificate.
Mechanical Properties
Here is a comparative table of typical mechanical properties (at ambient temperature) of the same or analogous base tube materials / grades.
| Grade |
Yield Strength (MPa) |
Tensile Strength (MPa) |
Elongation (%) |
Hardness (HV or similar) |
| TP304 |
~215 |
515–720 |
≥ 40 % |
~200–220 HV |
| TP316 |
~215 |
515–695 |
≥ 40 % |
~200–220 HV |
| T11 |
~205 |
415–585 |
≥ 20 % |
~140–180 HV |
| T22 |
~205 |
415–585 |
≥ 20 % |
~140–180 HV |
| P11 |
~205 |
415–585 |
≥ 20 % |
~140–180 HV |
These values are indicative and depend on heat treatment, wall thickness, and manufacturing tolerances. Always rely on mill test certificates or standard references.
Key Features
-
High thermal efficiency: The fins increase external (or internal) surface area, accelerating heat transfer and reducing required tube length or shell size.
-
Laser welding bond: In finned tubes manufactured by laser welding, full penetration, continuous weld, and minimal heat-affected zone improve fin-to-tube bonding, reduce thermal resistance and enhance corrosion resistance.
-
Compact “hairpin” geometry: The U-bend or dual leg arrangement enables compact counterflow designs, reduces the need for expansion joints, and saves footprint.
-
High pressure / high temperature capability: Robust welding and material choice allow operation under demanding boiler or process conditions.
-
Ease of maintenance: The hairpin configuration allows easier access, inspection, and cleaning relative to long straight bundles.
Governing Standards
Depending on region and application, the following standards may apply:
-
ASTM / ASME: e.g., ASTM A213, ASME Boiler & Pressure Vessel Code (B & PV) for seamless ferritic and austenitic tubes
-
EN: European standards for steels and heat exchangers
-
GOST / Russian: equivalent specifications in Russian / CIS markets
-
JIS: Japanese Industrial Standards
-
GB: Chinese national standards (e.g. GB for steels, tubes)
The finned tube manufacturer must ensure compliance to the applicable standard (material, dimensional tolerances, pressure test, nondestructive exam).
Application Fields
Broad Application Areas
-
Power generation (boilers, economizers, waste heat recovery)
-
Petrochemical & chemical processing
-
Oil & gas
-
HVAC / industrial heating / steam systems
-
Food / pharmaceutical process heating
-
Heat recovery / regenerative systems
Specific Applications
-
Boiler economizer: Brown fintube hairpin tubes are used to recover residual heat from flue gases before stack, improving efficiency.
-
Waste heat boiler / heat recovery: In industrial plants where hot gases or streams need to be cooled or heat recuperated.
-
Gas heaters / superheaters: As part of gas-to-gas or gas-to-fluid heat exchangers.
-
Process heaters in chemical plants: Where a fluid must be heated or cooled efficiently in a compact footprint.
-
Air preheaters / flue gas heat recovery: Finned tubes help to boost heat exchange between flue gas and incoming air or process streams.
Q: Are you trading company or manufacturer ?
A: manufacturer,also can do trading.
Q: How long is your delivery time?
A: Generally speaking,it is 10-15 days if the goods are in stock,or it is 30-40 days if the goods are not in stock,
it is according to quantity.
Q: Do you provide samples? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact with me.
